automatic PET Bottle blowing machine 9000bph for 500ml
You are here: Home » Products » Bottle Blowing moulding system » automatic PET Bottle blowing machine 9000bph for 500ml

loading

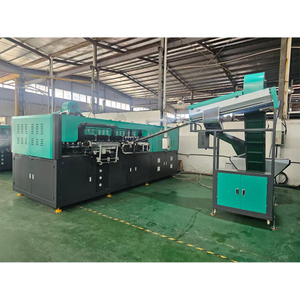

automatic PET Bottle blowing machine 9000bph for 500ml

This machine use for making plastic bottles with high speed 9000bottles per hour ,the mold with 6cavity .
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GM-6C

  • GM

Specification

Automatic blowing machine 6cavity

90006c

Flow chart of PET Bottle blowing


layout

9000-6cd


Features

1.preform entry system: Adopt single channel preform entry, servo embryo separation, fast and accurate, effectively solve the problem of wear between stuck preform and bottle preform.



2.Revolution SYSTEM: ADOPT SPECIAL chain, driven by servo motor, make its heating unit smooth in movement, fast positioning, low noise.

3.Heating SYSTEM: USING rotary bottle blowing machine mode heating and conveying, can reduce energy consumption, greatly improve the speed and quality of heating.


4.Mold system: Adopt high pressure mold locking technology, no die swelling phenomenon, and die closing line is thin. The MOLD ADOPTS DRAWER TYPE STRUCTURE AND IS FIXED WITH FOUR PULL RODS ON THE BACK PLATE OF THE MOLD, WHICH CAN BE EASILY REPLACED WITHIN HALF AN HOUR.

5.Pulling AND BLOWING system: THE cycle time of one blowing and two blowing can be adjusted, and each pulling rod can be adjusted separately according to different pipe embryos and different bottle types of customers, with high flexibility.

6.Electronic CONTROL SYSTEM: PNEUMATIC AND electrical components are internationally famous brands, touch screen control system is easy to operate, with perfect monitoring and induction Settings, with fault diagnosis function, automatic calculation report function, master the production efficiency of each shift.



7.Cooling/CHILLED WATER CIRCULATION SYSTEM: A COOLING CHANNEL IS PROVIDED UNDER the HEATING box. When the bottle embryo is heated, the cooling channel is used to block the heat of the lamp tube and protect the mouth from deformation. Chilled water to the mold, rapid cooling mold, improve the productivity efficiency of the machine.

Main configuration list

No

Name

Place

Brand

Electrical/control element

1

Air switch

France

Schneider

2

Middle relay

Japan

(OMRON)

3

Contactor

France

Schneider

4

Button

France

Schneider

5

Control switch

France

Schneider

6

Magnet switch

China

(AIRTAC)

7

Touch screen

China

Viewview

8

PLC

Japan

(OMRON)

9

Servo

Japan

(YASKAWA)

10

Air cylinder

China

(AIRTAC)

Valve/connections

1

One time blow air valve

USA

(PARKE)

2

2times blow air valve

3

 degas air valve

4

Cylinder control valve

China

(AIRTAC)

5

Clamping guide

Korea

WON

Main Parameters:

Parts

Items

parameters

Bottles

Max size

500ml -6cavity

1500ml-3cavity

Neck size

Based on preforms 28 or 30mm

Capacity

6000bph for 500ml

3000bph for 1500ml

Heating

Heating units

4

heating lamps layer

8

Preform holder qty

108

Electrical

voltage

380V

Frequency

50Hz

Power

35-43kw/h

Install power

77kw

Air source

Low compressed air pressure

1Mpa

Low compressed air consumption

1.0m3/min

High compressed air pressure

3.5Mpa

High  compressed air consumption

6.0m3/min

Cooling water

Pressure

2-4bar

Cooling water(temp≤18℃)

flow

9.5m3/h

Weight

Approx

7.5t

Dimension

Main machine(L×W×H)

4500mm×2380mm×2100mm

Preform loading(L×W×H)

2150mm×2420mm×3200mm

Free spare

Name

Qty

Magnet switch

3

Photo sensor switch

1

protector

2

Lamp 2000V

10

Heating head

6

Neck mat

4

rings

20

tool

1
